Wall isolation clip

About Wall isolation clip

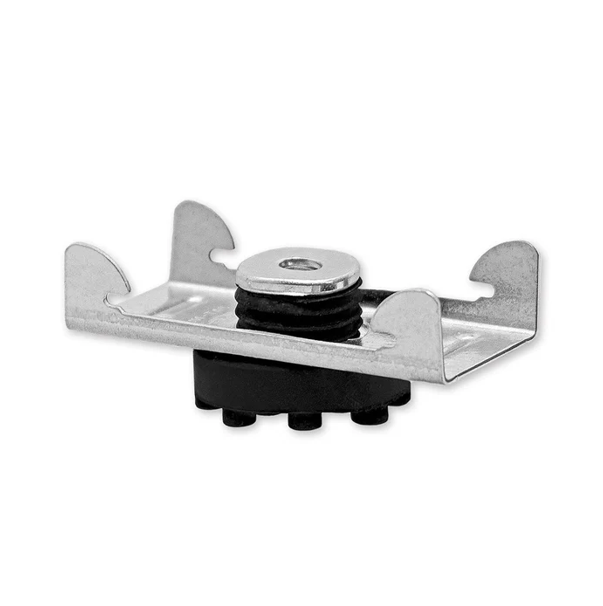

Wall Isolation Clip | Resilient Acoustic Clip for High STC Wall & Ceiling Soundproofing

Our Wall Isolation Clips are high-performance acoustic decoupling mounts designed to reduce structure-borne noise and vibration transmission in walls and ceilings. Made with a galvanized steel base and elastomeric insert (EPDM or Neoprene), these clips isolate gypsum boards or acoustic panels from the structural frame creating a floating wall system that significantly enhances STC ratings by 1520 dB.

Used widely in home theatres, studios, hotels, hospitals, commercial buildings, and premium residential projects, wall isolation clips are the secret to true sound separation without increasing wall thickness significantly.

Key Features:

• Resilient decoupling clip system for walls and ceilings

• Increases STC by 1520 dB in gypsum or concrete wall assemblies

• Made of galvanized steel with EPDM rubber or neoprene isolator

• Supports up to 36 kg per clip (ideal for 12 layers of gypsum board)

• Works with metal or wood studs and standard hat/furring channels

• Fire-rated and moisture-resistant for long-term durability

• Easy to install with screws no special tools required

Applications:

• Studios, home theatres, and editing rooms

• Apartments, villas, and duplexes

• Commercial offices, call centers, and conference rooms

• Hospitals, clinics, and sound-sensitive zones

• Hotels, hostels, and educational institutions

• Gyms, showrooms, and boardrooms

Technical Specifications:

• Material: Galvanized Steel + EPDM/Neoprene Rubber Insert

• Load Capacity: 36 kg per clip

• Compatible: 1x/2x 12mm16mm drywall sheets

• Mount: Hat channel or furring channel

• Acoustic Improvement: +15 to +20 dB STC gain

• Fire Compliance: ASTM E119 / EN 1364 / UL 263 (on request)

• Installation: Screw-fix to studs @ 600mm intervals
