Impact noise barrier 5mm

Product Description

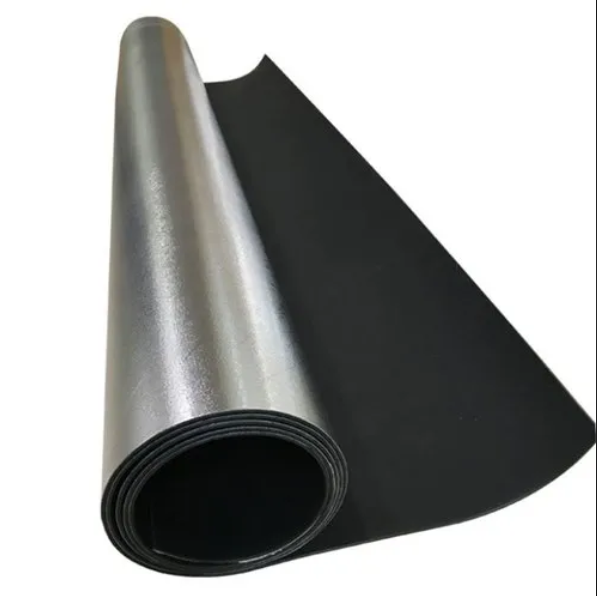

Impact Noise Barrier 5mm | High-Density Floor Impact Sound Insulation Sheet

Impact Noise Barrier (5mm) is a flexible, high-density acoustic underlay engineered to reduce structure-borne impact sound transmission through floors and ceilings. It acts as a decoupling layer beneath tiles, wood, vinyl, or carpet flooring, effectively minimizing footfall noise, dropped-object impact, and vibration resonance in residential, commercial, and industrial buildings.

Manufactured from cross-linked polyethylene (XLPE), rubber composite, or bitumen-loaded vinyl, this product provides excellent impact isolation performance, with added thermal insulation and durability.

Key Features:

• 5mm thick acoustic membrane for impact noise reduction

• Helps achieve up to Lw 1824 dB sound reduction (as per ISO 10140)

• Flexible, rollable, and easy to install under a variety of floor finishes

• Compatible with tile, hardwood, laminate, SPC, LVT, or carpet flooring

• Resistant to moisture, fungi, and thermal degradation

• Does not compress over time like foam alternatives

• Available with or without self-adhesive backing

• Optional aluminum foil / scrim layer for vapor barrier protection

Applications:

• Apartment buildings and multi-storey homes

• Hotels, hospitals, and education facilities

• Recording studios and music rehearsal rooms

• Commercial office flooring

• Home theaters and gyms

• Factories with high-impact machinery

Technical Specifications:

• Material:
  XLPE / EPDM rubber / Bitumen + vinyl composite

• Thickness: 5mm

• Roll Size: 1m 10m / 1.2m 10m (custom available)

• Density: 6001200 kg/m

• Impact Sound Reduction (Lw): Up to 24 dB

• Tensile Strength: >200 kPa

• Thermal Resistance: ~0.050.10 mK/W

• Fire Rating: Class B (EN 13501-1) / ASTM E84 Class A

• Water Absorption: <1%

• Installation: Loose laid or glued (optional self-adhesive)
