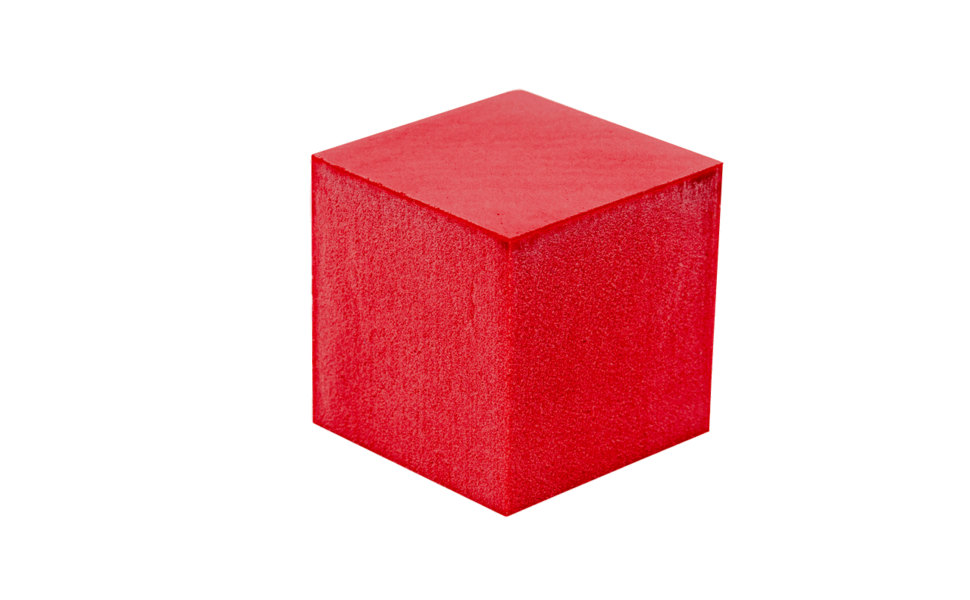

Floor isolation Blocks

Product Description

Floor Isolation Blocks | Vibration Control & Acoustic Isolation for Industrial and Architectural Applications

Floor Isolation Blocks are engineered to reduce structure-borne vibrations, impact noise, and footfall sound transmission between floors and foundations. Made from high-density elastomeric rubber, EPDM, or composite polymer blends, these blocks are used to isolate machinery, equipment, studios, floating floors, auditoriums, and HVAC systems from transmitting vibration and noise to adjacent structures.

They provide a clean, non-intrusive, and high-load bearing solution to meet modern acoustic and anti-vibration standards.

Key Features:

• Designed to isolate vibrations from floors and structural slabs

• Made from EPDM / Neoprene / PU Elastomer / Rubber Composite

• Load capacity ranges from 50 kg to 5000 kg per block

• Highly durable, resistant to compression, UV, and weathering

• Available in multiple durometer (hardness) ratings for different weights and resonance frequencies

• Long-lasting and maintenance-free

• Can be placed beneath concrete screeds, raised floors, machines, or studio floating platforms

Applications:

• Floating floors in home theaters, auditoriums, studios, gyms

• HVAC systems, chillers, and mechanical equipment bases

• Industrial machines to prevent vibration transfer to foundations

• Recording booths, sound-sensitive medical or R&D labs

• Conference rooms, boardrooms, multiplexes

• Acoustic floor decoupling in hotels, hospitals & educational institutions

• As anti-vibration pads under raised access flooring

Technical Specifications:

• Material: EPDM / Natural Rubber / PU Elastomer / Neoprene

• Thickness: Typically 25100mm

• Load Range: 505000 kg/block (customizable)

• Compression Deflection: 815%

• Shore A Hardness: 4080 (based on application)

• Fire Resistance: Available on request (UL/ASTM ratings)

• Custom shapes and load-calibrated block options available
