Ceiling isolation clip

About Ceiling isolation clip

Ceiling Isolation Clip | Resilient Acoustic Decoupler for Soundproof Ceilings

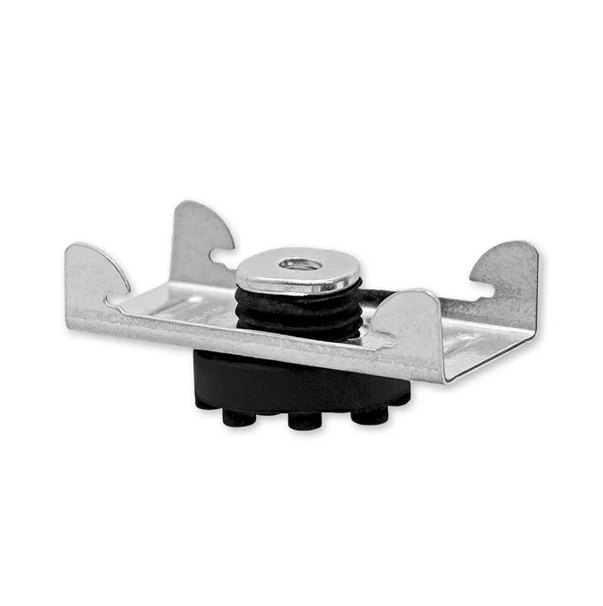

Our Ceiling Isolation Clips are resilient mounts designed to decouple suspended gypsum or acoustic ceilings from structural slabs, effectively reducing impact noise, airborne sound, and mechanical vibration transmission between floors. Made from galvanized steel with a resilient EPDM/neoprene insert, these clips help achieve high STC and IIC ratings in modern acoustic ceiling assemblies.

Ideal for use in recording studios, home theaters, hotels, offices, hospitals, and commercial spaces where superior ceiling soundproofing is essential.

Key Features:

• Reduces structure-borne sound through resilient decoupling

• Enhances STC by 1520 dB and IIC performance

• Compatible with metal furring channels, top-hung suspension rods, and ceiling grids

• Supports gypsum board or acoustic panels (single or double layer)

• Load-rated up to 3650 kg per clip depending on model

• Designed to work in both direct and suspended ceiling systems

• Moisture-resistant, fire-rated, and long-life elastomer insert

Applications:

• Studios, theaters, cinemas, and sound stages

• Apartments and luxury homes (floor-to-ceiling soundproofing)

• Commercial buildings: offices, conference halls, co-working spaces

• Hospitals and educational institutions

• Hotels and resorts for inter-floor noise control

• Mechanical rooms and MEP ceilings

• Home gyms, labs, and multi-floor buildings requiring acoustic separation

Specifications:

• Material: Galvanized Steel with EPDM / Neoprene insert

• Load Capacity: Up to 3650 kg per clip

• Compatible Channels: 25/50mm hat channels or 38x12mm furring strips

• Acoustic Rating: STC improvement of 1520 dB (depending on build-up)

• Fire Rating: Compliant with ASTM E119 / UL 263 / EN 13501

• Installation: Screw-on to ceiling slab; attach metal furring below clip

• Spacing: Typically 600mm x 600mm or as per load calculations
